Description

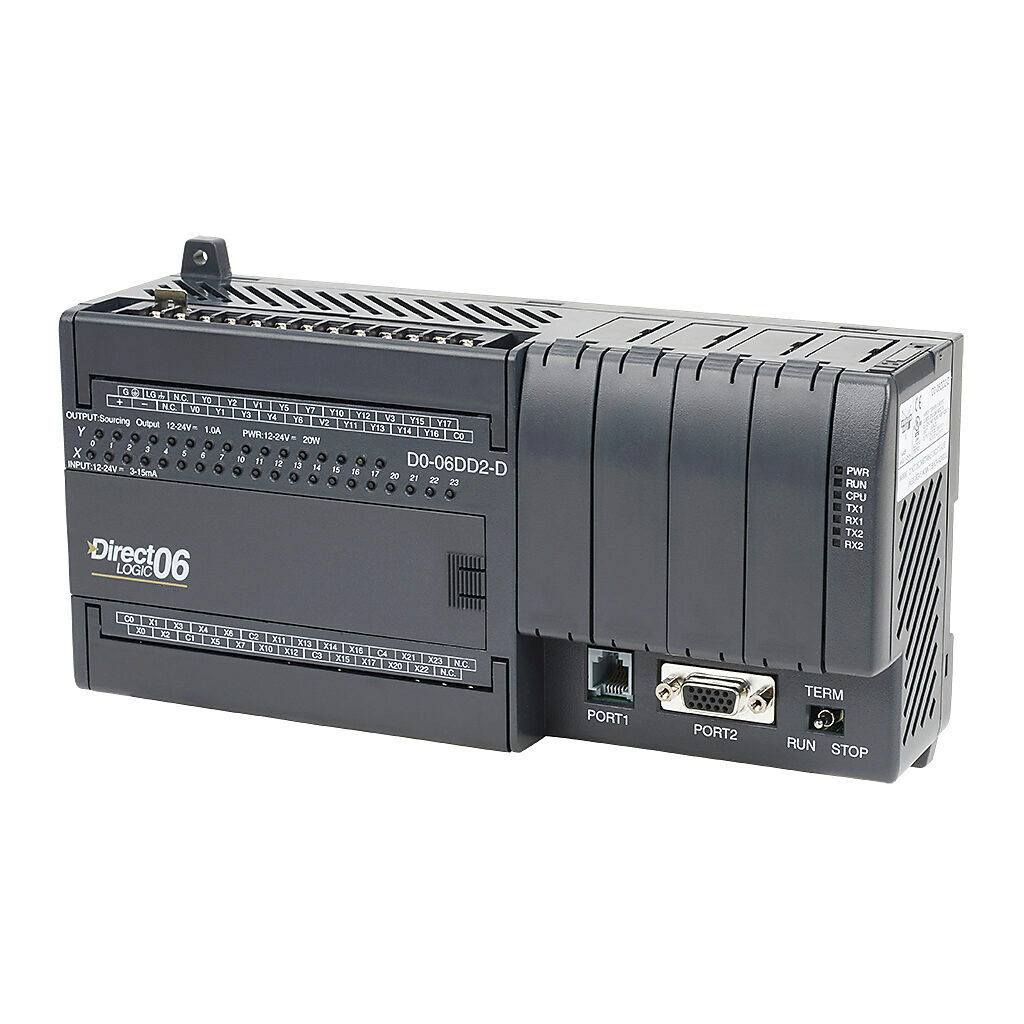

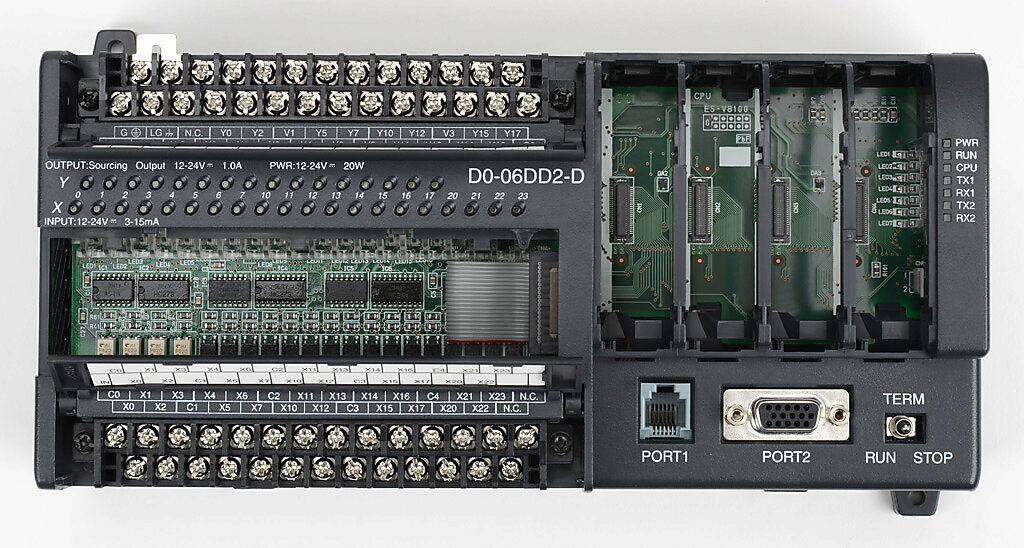

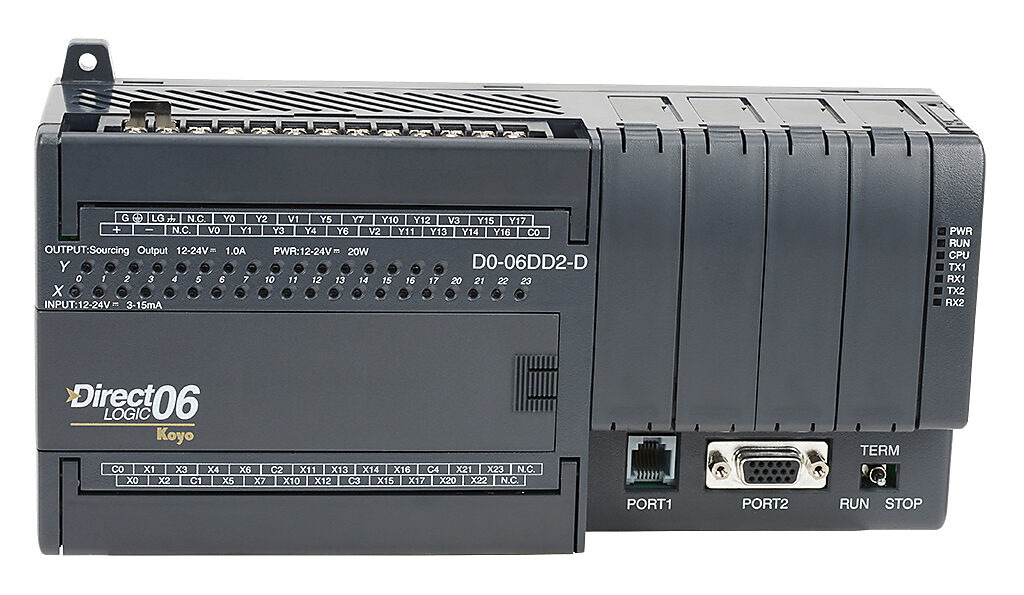

- DL06 CPU
- 20 DC in / 16 DC out
- requires external 12-24 VDC power. 14.8k words total (7679 words ladder – flash
- 7488 words V-memory)
- RLL/RLLPLUS programming (DirectSOFT32 Version 4.0 or higher)
- two built-in RS-232C communication ports. Secondary communications port supports RS-232C/RS-422/RS-485
- DirectNET Master/Slave
- MODBUS RTU
- Master/Slave
- and ASCII In/Out. Inputs: 20 DC inputs
- 12-24 VDC current sinking/sourcing
- 5 isolated commons (4 inputs per common). First 4 inputs are configurable in one of several high-speed I/O features such as 7KHz counter input
- pulse catch input
- or interrupt input (not available when using pulse output). Outputs: 16 DC outputs
- 12-24 VDC current sourcing
- 1.0A/point max.

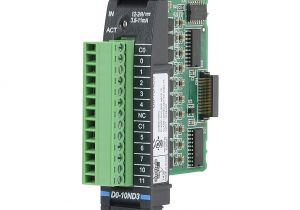

- 4 isolated commons (4 points per common). 2 outputs are configurable for independent CW/CCW pulse train output or step and direction pulse output up to 10kHz (0.5A/point) (not available when using high-speed inputs). Four option slots available for I/O or communication modules.
